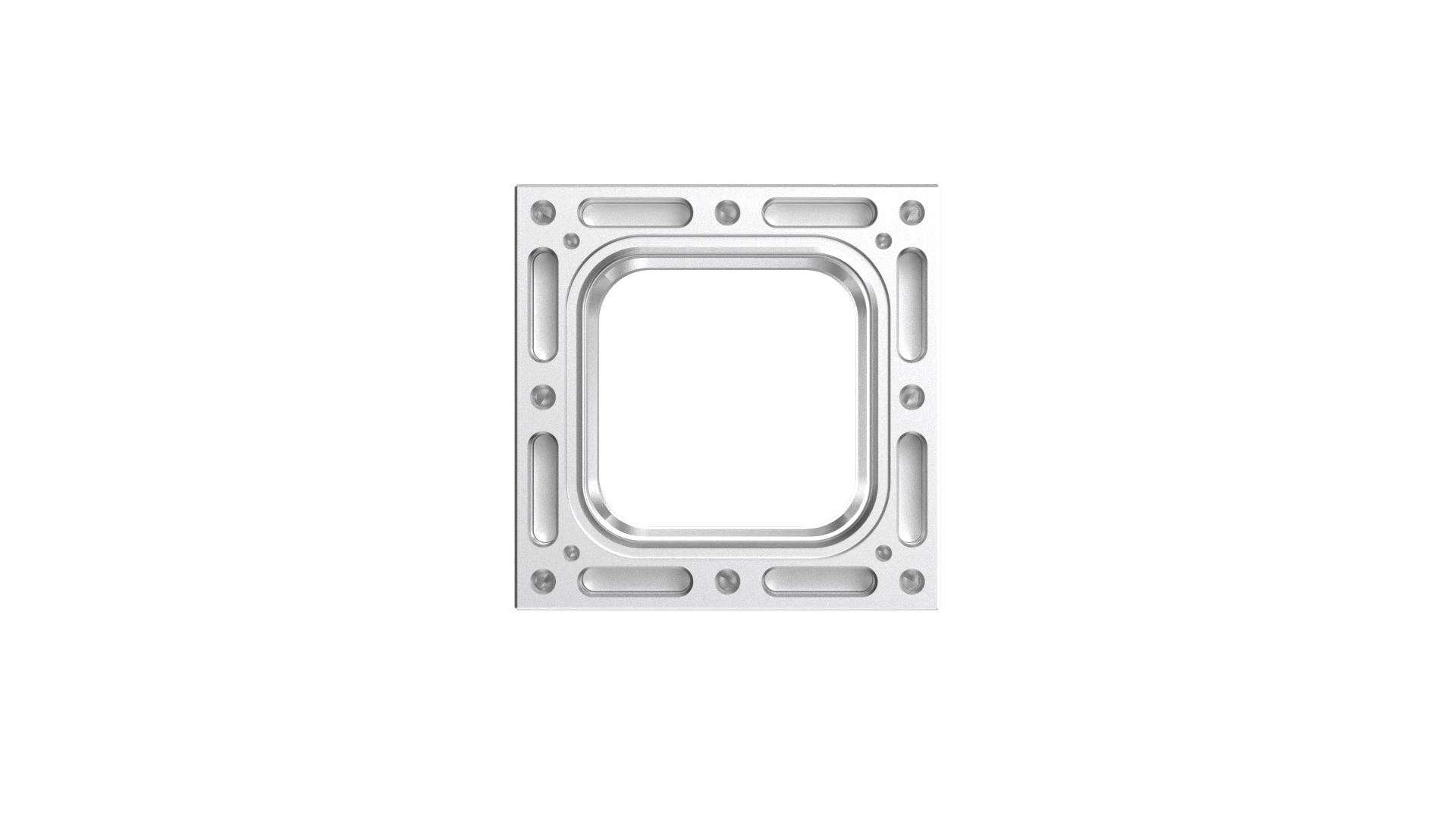

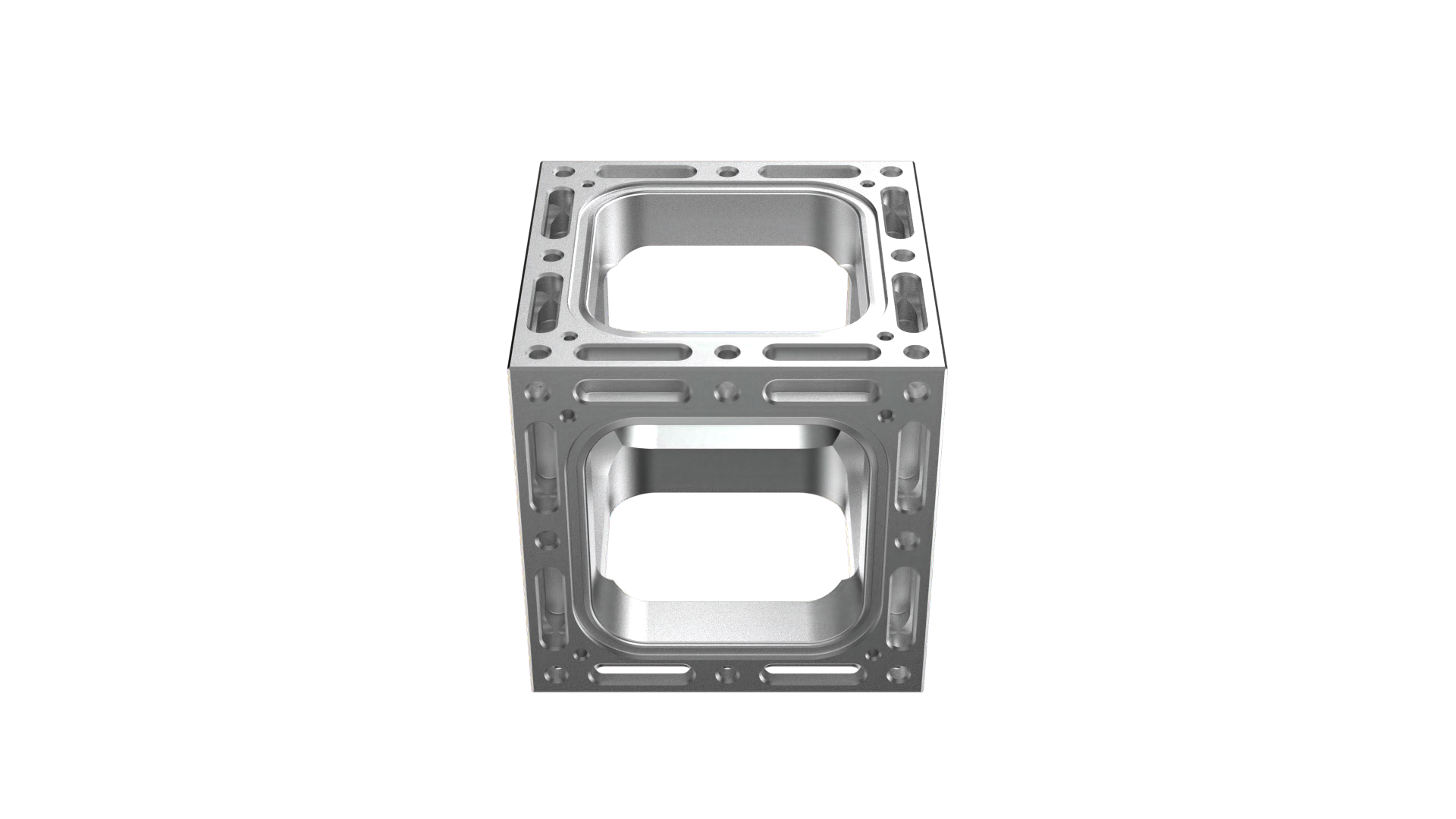

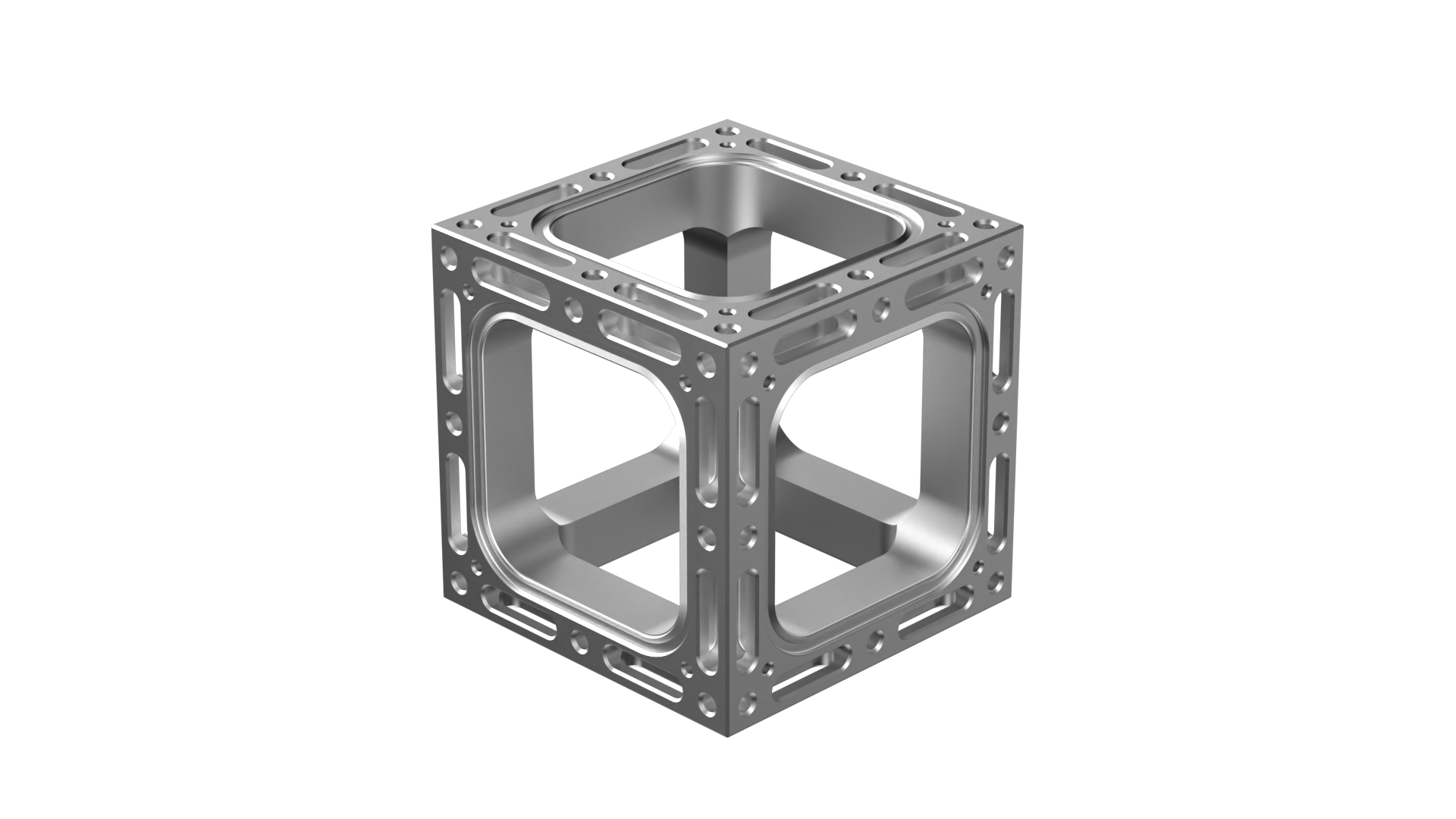

Vacuum Chamber
Original price was: € 1199,00.€ 9,99Current price is: € 9,99.
| Dimensions | 15 × 15 × 15 cm |
|---|---|
| Outside Dimensions | 150x150x150 mm |
| Iinside Dimensions | 100x100x100 mm |
| Material | EN-AW 6082-T6 aluminium |
| Minimum Plate Distance | 130mm |
| Volume | 1865ml |
| Internal Surface Area | 1089m2 |
| Minimum Pressure | 1e-9mbar without heating |
| Maximum Overpressure | 500mbar |
| Weight | 1.7kg |
| Vacuum Leak Rate | max. 1e-12mbar/(l s), measured with Leaktester Pfeiffer SmartTest; Test Gas: Helium |
| Min. Operating Temperature | -50°C |
| Max. Operating Temperature | 200°C |
